GYXTC8S Armored Self Supporting Outdoor Fiber Optic Cable / Optical Fibre Cable

Name: GYXTC8S Armored Self Supporting Outdoor Fiber Optic Cable Optical Fibre Cable
Brand: KCO, Kocent Optec Limited
Price: 1 USD

Wholesale GYXTC8S Armored Self Supporting Outdoor Fiber Optic Cable / Optical Fibre Cable from china suppliers

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-GYXTC8S

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 10,000km/ month

Delivery Time : 3~5 days after get payment

Packaging Details : wooden roll, wooden pallet

Material : LSHZ, PVC

Name : GYXTC8S cable

Length : 2km~3km each roll

Application : outdoor or customized

Fiber : single mode, multimode, OM3, OM4, OM5

Model : GYXTC8S

Contact Now

GYXTC8S Armored Self Supporting Outdoor Fiber Optic Cable

GYXTC8S Figure 8 Armored Self Supporting Outdoor Fiber Optic Cable available in Single Mode and Multimode (OM3, OM4, OM5) configurations.

Product Description

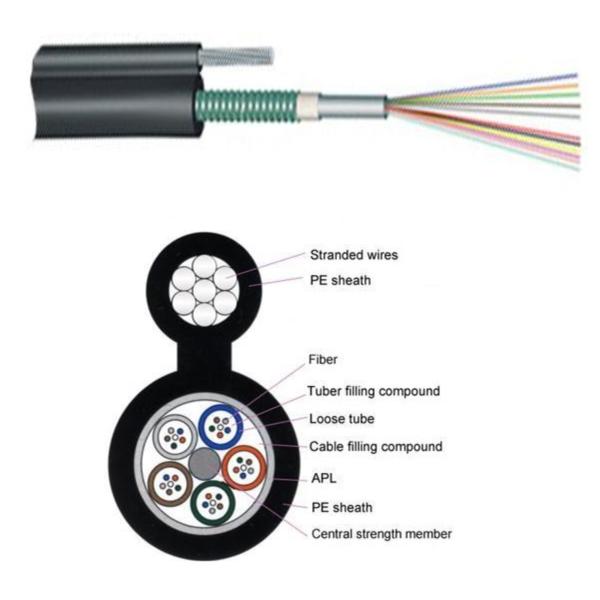

Loose tube style, figure-8 optical fiber cable with jelly compound and steel wire messenger wire
Filling compound and water-proof tape for enhanced protection
Incorporation steel messenger wire suitable for overhead installation (pole to pole or pole to premises)
High strength, tracking-resistant sheath

Applications

Aerial installation
Long-haul communication systems
Junction communication systems
Subscriber network systems
Local area network systems

Key Characteristics

High tensile strength stranded wires meet self-supporting requirements
Excellent mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensures critical fiber protection
Comprehensive watertight protection through loose tube filling compound, 100% cable core filling, and steel tape moisture barrier

Dimensional Characteristics

Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)
GYXTC8S	8	5.0*8.0	7*1.0mm	110
GYXTC8S	12	5.0*8.0	7*1.0mm	110

Product Photos

GYXTC8S Armored Self Supporting Outdoor Fiber Optic Cable / Optical Fibre Cable

Technical Parameters

Cable Count	Outer Sheath Diameter (mm)	Weight (kg)	Minimum Tensile Strength (N)	Minimum Crush Load (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature (°C)
24-60	10.5	105.00	1500 (short term) 600 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	-40 to +60
72-96	13.5	208.00	1500 (short term) 600 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	-40 to +60
144	15.5	295.00	1500 (short term) 600 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	-40 to +60

Optical Characteristics

Fiber Type	Standards	Fiber Specifications
Multimode	G.651	A1a:50/125, A1b:62.5/125 Graded-index fiber
Singlemode	G.652(A,B,C,D) G.655 G.657(A1,A2,B3)	B1.1: Conventional fiber B2: Zero dispersion shifted B1.2: Cut-off wavelength shifted B4: Positive dispersion shifted single-mode fiber

OEM/ODM Services

We offer comprehensive OEM and ODM services. Custom branding available on cables, packaging bags, labels, or any other requested location.

Packing Options

Carton box
Wooden box
Wooden pallet

Shipping Methods

International express (UPS, TNT, DHL, etc.)
International air freight
Sea freight
